For 1981-1987 Toyota Pickup Carburetor Automatic Choke 22R 2-Barrel 35290 C4036

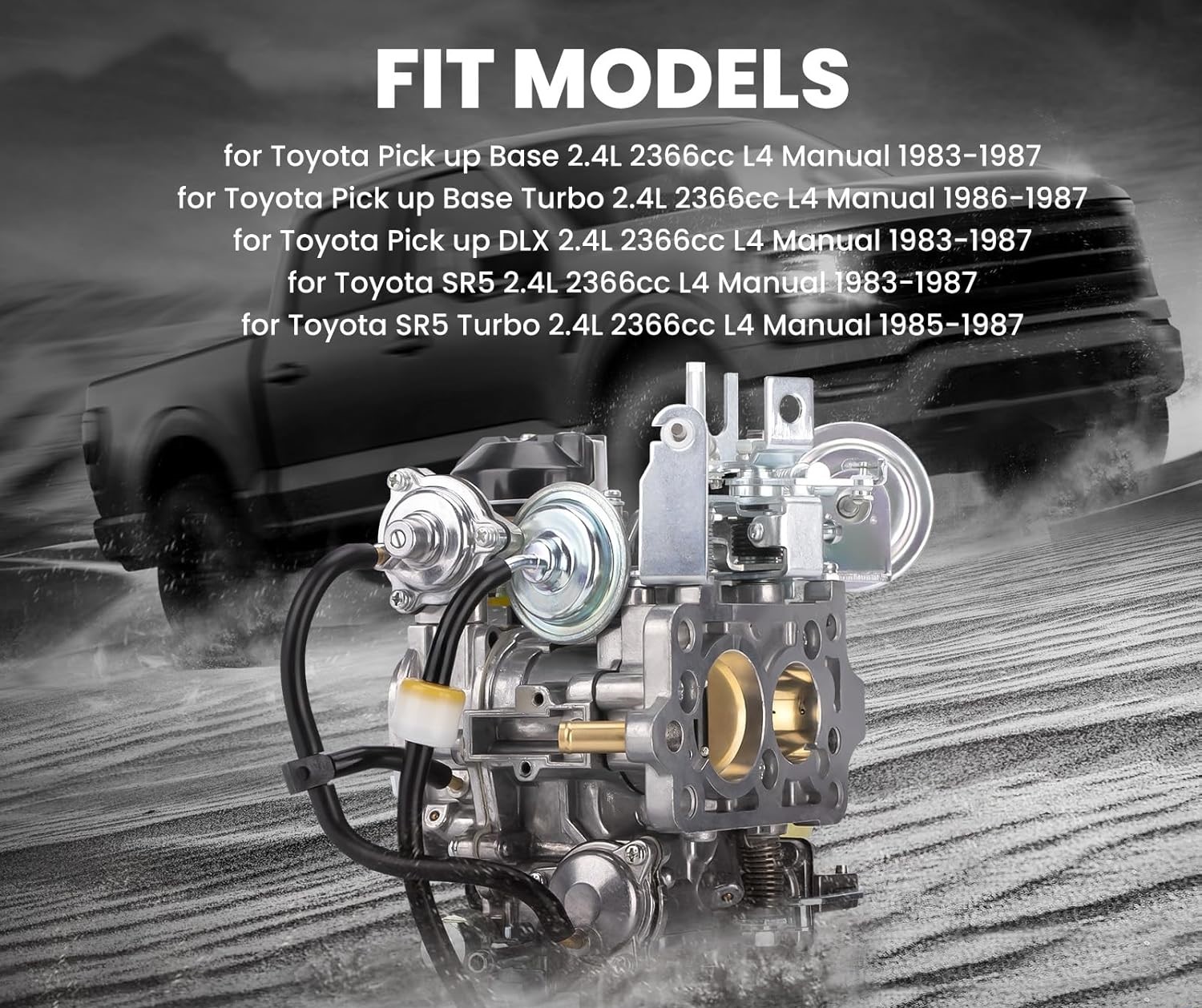

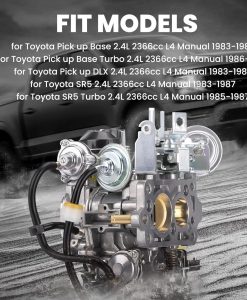

Applications
for Toyota Pick up Base 2.4L 2366cc L4 Manual 1983-1987
for Toyota Pick up Base Turbo 2.4L 2366cc L4 Manual 1986-1987
for Toyota Pick up DLX 2.4L 2366cc L4 Manual 1983-1987
for Toyota SR5 2.4L 2366cc L4 Manual 1983-1987
for Toyota SR5 Turbo 2.4L 2366cc L4 Manual 1985-1987
Engine

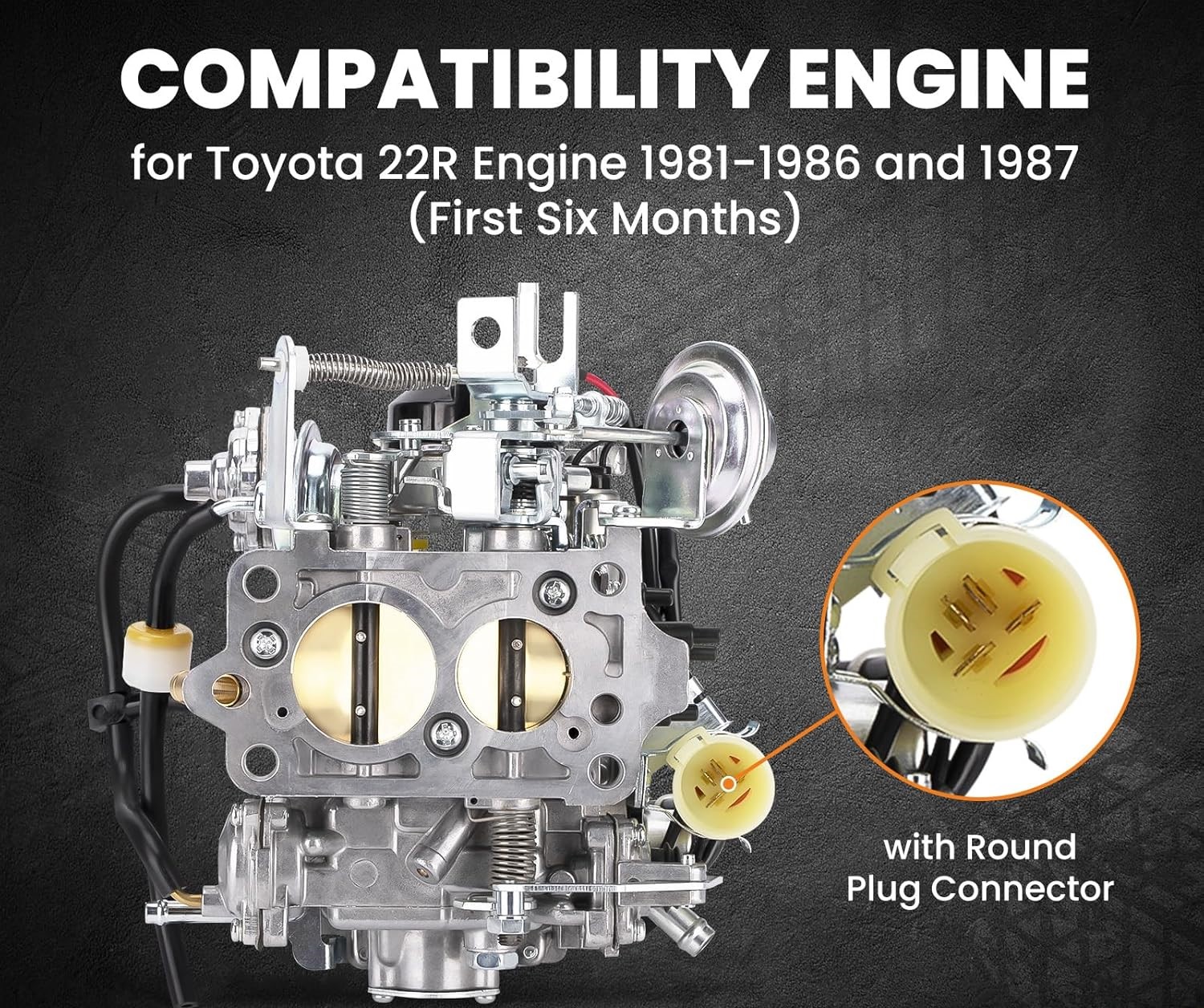

Fit for Toyota 2 barrel 22R Engine w/Round Plug Connector on Carburetor 1981-1986
Note: Does not fit 1987 for Toyota (the last 6 months) 2 barrel 22R Engine w/ Square End

Specifications
Material: Aluminum & Zinc
Type: Automatic Choke
Input Voltage: DC 12V

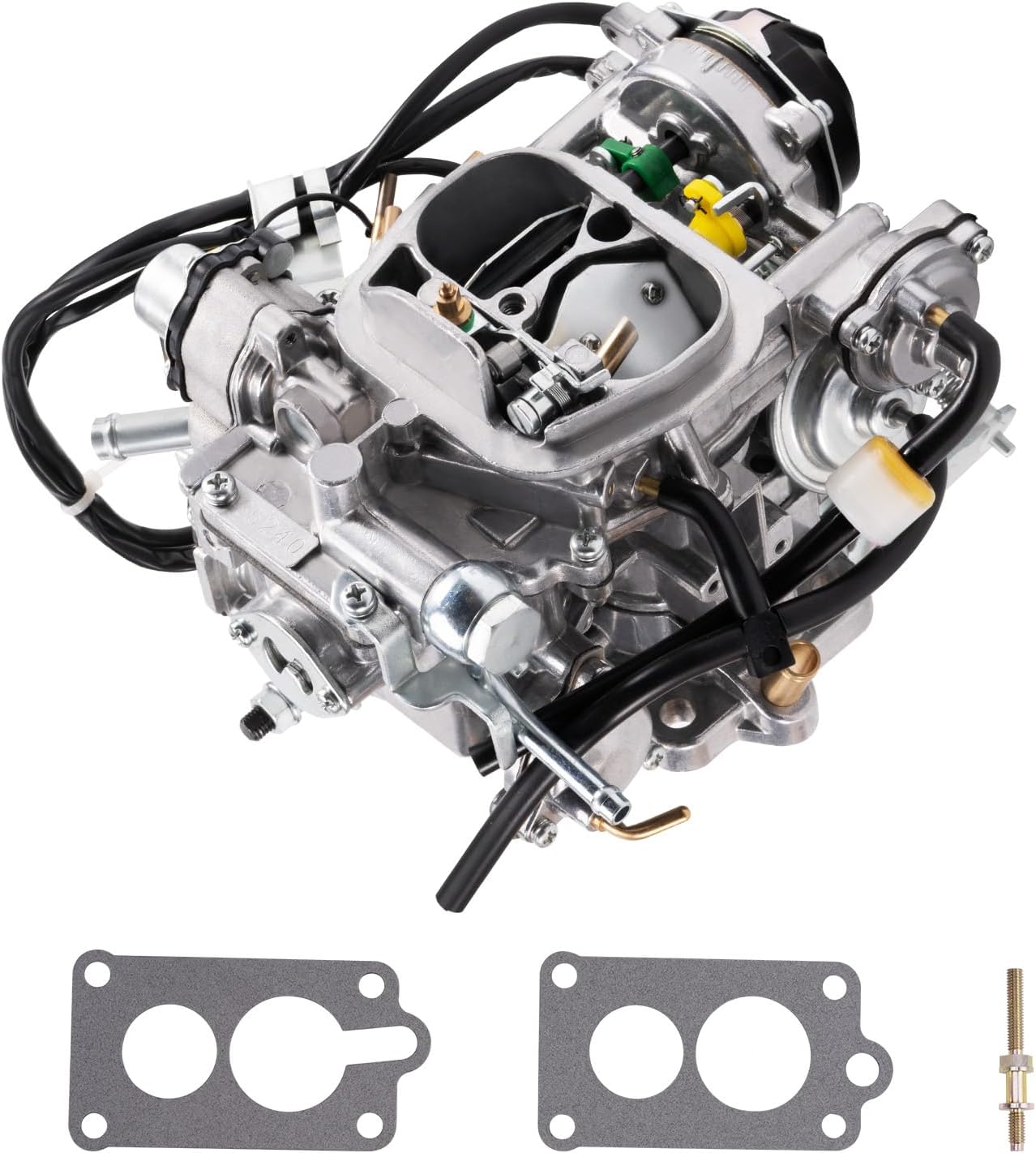

Package Contents: 1 x Carburetor,1 x Screw,2 x Gaskets

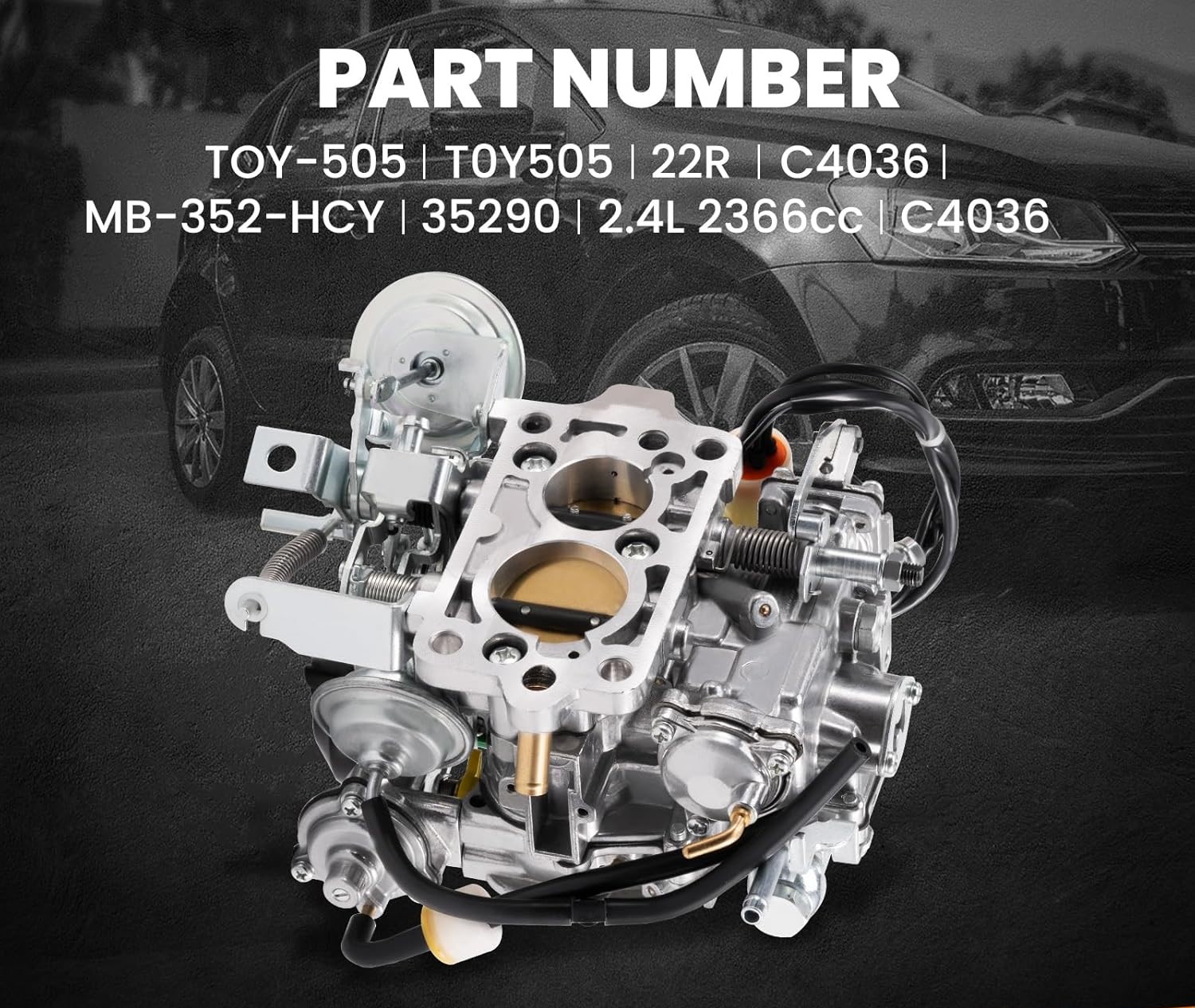

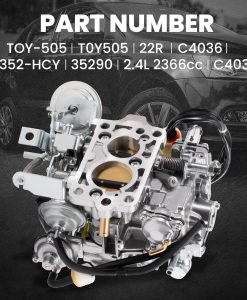

Manufacturer Part Number: TOY-505 / T0Y505 /22R / C4036 / 21100-35463 / MB-352-HCY
Part Number: 35290 / 2.4L 2366cc / C4036

Inner Diameter (Intake Side): 40mm and 32mm
Bolt Hole Spacing Length/Width: 96.9 * 50mm（Center To Center）
Choke Inner Length & Width: 76.5 * 40mm
Choke Outer Length & Width: 94 * 78mm
Venturi Diameter: 26mm and 40mm
Same Bore Size: 40/32mm
